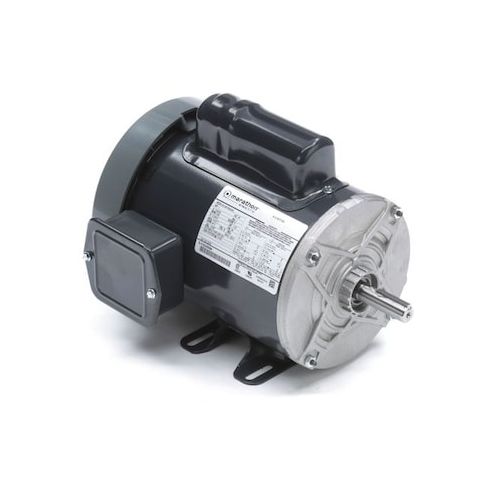

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame MPN:5KC49TN0034
Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame
This 1 hp Capacitor-Start General Purpose Motor from Leeson is a versatile and reliable solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor offers a single phase design with a nameplate RPM of 1,725. Its totally enclosed fan cooled design provides optimal protection and efficiency, making it perfect for continuous duty cycles in various industries. With a service factor of 1.15 and a maximum ambient temperature of 40 Degrees C, this motor is designed to withstand demanding conditions. Ideal for use in factories, workshops, and other commercial settings, it offers a cost-effective and hassle-free solution.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved durability and reliability
- Capacitor-Start motor design for efficient operation at lower RPM
- Continuous duty cycle capability for reliable operation under heavy loads
Top product applications:
- Industrial conveyor belts
- Water pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.2/6.6 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.19
- Package Width: 10.94
- Package Height: 9.50
- Package Weight: 38.00
Product info last updated on February 8, 2026 10:14am UTC
Category: Motors
