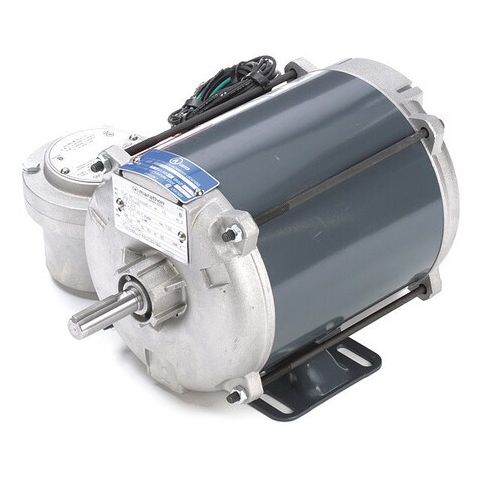

HazLoc, 1/3 HP, 1725 RPM, 208-230/460V MPN:056T17E5309
HazLoc, 1/3 HP, 1725 RPM, 208-230/460V
The Leeson HazLoc motor is a reliable and efficient solution for hazardous location applications. This 1/3 HP, 1725 RPM motor is designed for three-phase use and operates within a wide voltage range of 208-230/460V AC. Its totally enclosed non-ventilated design ensures safe operation in harsh environments. The motor's continuous duty cycle and high service factor make it ideal for applications such as oil and gas extraction, chemical processing, and pharmaceutical manufacturing. With its compact size and low weight, the HazLoc motor is easy to integrate into existing systems, providing a cost-effective and efficient solution for demanding industrial applications.
Top product features:
- Totally enclosed non-ventilated motor enclosure for dust and moisture protection
- Continuous duty cycle operation for reliable performance in demanding applications
- Three-phase motor design for efficient power transmission and reduced energy consumption
Top product applications:
- Pumps for hazardous locations such as chemical plants or oil refineries
- Fans for hazardous locations such as paint booths or welding areas
- Conveyors for hazardous locations such as grain elevators or mining operations
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.2-1.2/0.60 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 25.00
Product info last updated on February 3, 2026 10:25am UTC
Category: Motors
