Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:145TTFR16033
Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

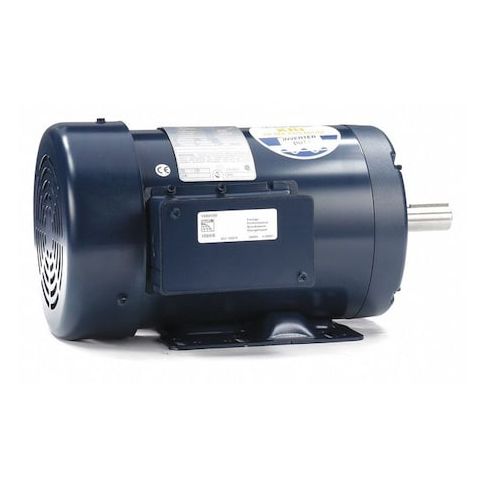

This Leeson three-phase general purpose motor is designed for heavy-duty applications, offering reliable performance and efficiency. Suitable for continuous duty, it operates at 1750 rpm and features a rigid base mounting type for secure installation. With a motor service factor of 1.15 and a maximum ambient temperature of 40 degrees C, it can withstand demanding environments. Its ball bearings ensure smooth operation, while the totally enclosed fan cooled design provides protection against dust and moisture. Ideal for use in manufacturing, processing, and other industrial settings, this motor is a reliable choice for applications requiring consistent power and efficiency.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1750 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.8/2.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 45.00
