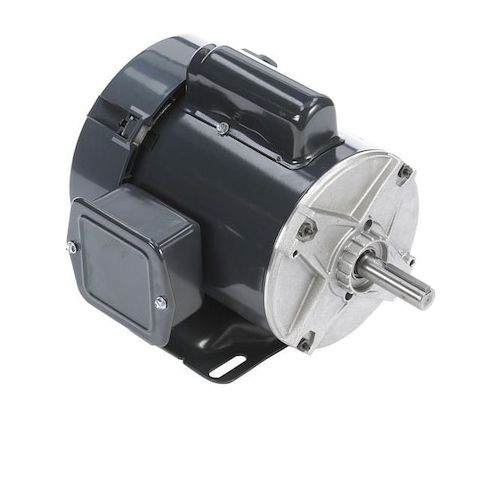

Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 56 Frame MPN:5KC32GN19
Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 56 Frame
This 1/4 hp Capacitor-Start General Purpose Motor from Leeson is designed for a wide range of applications, including industrial and commercial use. Its single-phase motor design and 1,725 RPM nameplate speed make it suitable for applications requiring moderate power and speed. The motor's totally enclosed fan-cooled design ensures efficient cooling and durability, while its CW/CCW rotation capability provides flexibility. With a maximum ambient temperature of 40°C and a service factor of 1, this motor is ideal for continuous duty cycles in environments with moderate temperatures. Its compact size and rugged design make it perfect for use in a variety of settings.
Top product features:
- Totally Enclosed Fan Cooled design for improved heat dissipation and motor longevity
- Single Phase motor design with Capacitor-Start for efficient power delivery and reduced energy consumption
- Continuous duty cycle capability for reliable operation in demanding applications
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.44
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 16.00
Product info last updated on February 6, 2026 3:39pm UTC
Category: Motors
