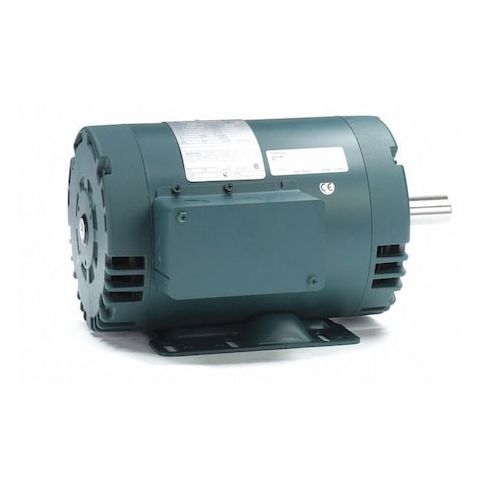

Three-Phase General Purpose Motor, 1 HP, 143T Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:143TTDR6027
Three-Phase General Purpose Motor, 1 HP, 143T Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM
This 1 HP, three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its 143T frame provides a compact and efficient design, while the open drip proof motor enclosure protects against dust and moisture. With a nameplate RPM of 1760, this motor is ideal for use in conveyor systems, pumps, and other machinery that requires high speed and reliability. Its high efficiency and continuous duty rating make it a cost-effective solution for demanding applications, and its CE, CSA, and UL recognition ensure compliance with industry standards.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications
- Conveyor applications
- Machine tool applications
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.2/1.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.44
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 38.00
Product info last updated on March 1, 2026 6:26pm UTC
Category: Motors
