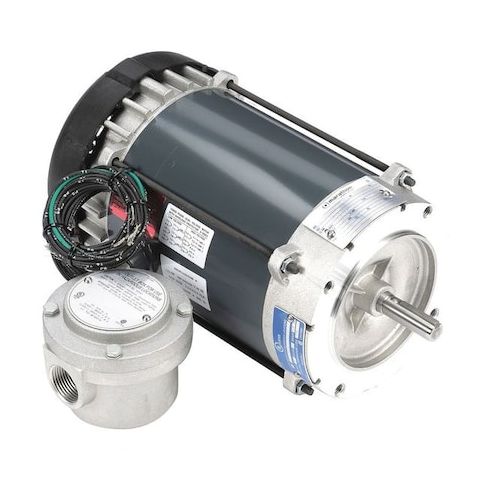

Hazardous Loc Mtr, 3-Ph, EPFC, 1/2 HP, T3B MPN:056T17G5315
Hazardous Loc Mtr, 3-Ph, EPFC, 1/2 HP, T3B
This Leeson hazardous location motor is designed for use in environments where standard motors cannot operate safely. Suitable for 208-230/460V AC and 1/2 HP, it features a three-phase design and 1,725 RPM nameplate speed. The motor is totally enclosed fan cooled, allowing for continuous operation in temperatures up to 40°C. Its Class I, Class II, and T3B temperature rating makes it suitable for use in hazardous locations where flammable gases or dusts may be present. Ideal for use in industrial settings, this motor provides reliable and efficient operation in challenging environments.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan-cooled design for improved cooling and reduced noise
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Industrial Equipment Manufacturing
- Pump and Fan Applications
- Oil and Gas Industry Equipment
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.4/1.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 28.00
Product info last updated on February 23, 2026 8:43am UTC
Category: Motors
