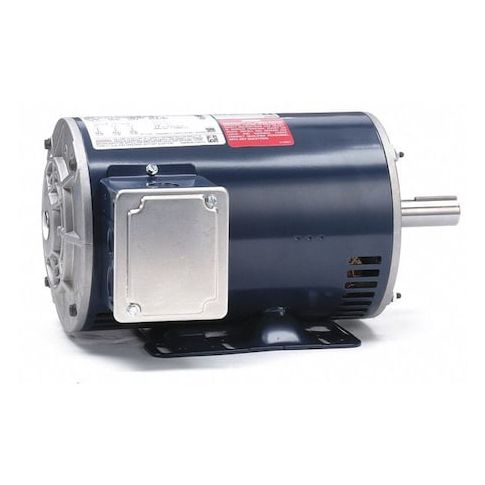

Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 575V AC Voltage, 1755 rpm Nameplate RPM MPN:145TTDR16061
Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 575V AC Voltage, 1755 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1755 rpm, Frame 145T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 46.00
Product info last updated on February 11, 2026 1:32pm UTC
Category: Motors
