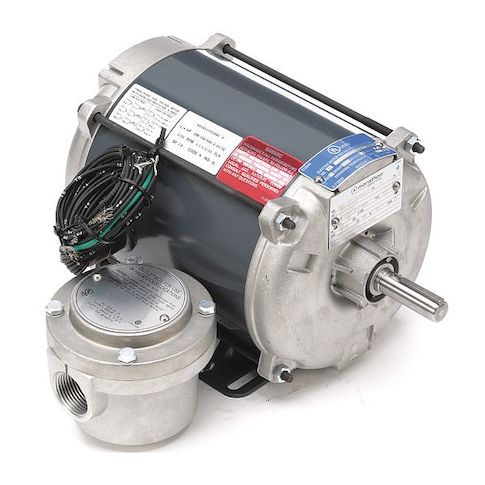

HazLoc Motor, 1/4 HP, 1725 RPM, 56 MPN:056T17E5308
HazLoc Motor, 1/4 HP, 1725 RPM, 56
The Leeson HazLoc Motor is designed for use in hazardous locations, meeting Class I, Class II, and Temp. Code T3B requirements. This 1/4 HP motor operates at 1725 RPM, making it suitable for a variety of applications, including industrial processes, oil and gas, and chemical facilities. Its three-phase design and totally enclosed non-ventilated enclosure ensure safe and efficient operation in harsh environments. The motor's continuous duty cycle and auto thermal protection provide reliable performance, while its compact size and lightweight design simplify installation and maintenance. Ideal for use in areas with high temperatures and explosive atmospheres.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design for protection from environmental factors
- Three-Phase motor design for efficient operation in various applications
- Continuous duty cycle capability for uninterrupted operation in demanding situations
Top product applications:
- Oil and Gas Pumps
- High-Temperature Furnace Fans
- Chemical Processing Equipment
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.1-1.1/0.55 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 25.00
