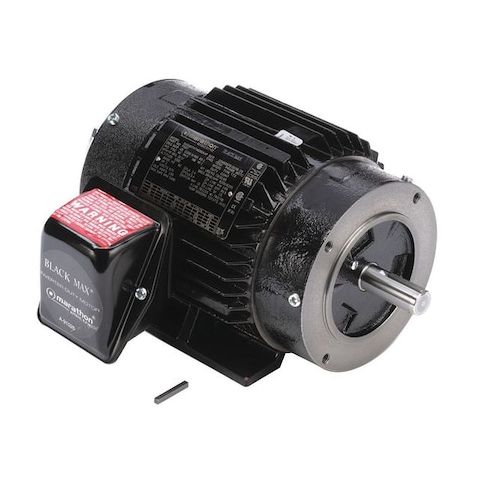

Vector Motor, 2 HP, 1750 rpm, 145TC, 575V MPN:145THTN6060
Vector Motor, 2 HP, 1750 rpm, 145TC, 575V
The Leeson Vector Motor is a high-performance, 2 HP, three-phase motor designed for demanding applications. Ideal for use in industrial settings, this motor boasts a 1,000:1 speed range and 6 lb-ft of torque, making it perfect for applications requiring precise control and high efficiency. Suitable for use in temperatures up to 104°F, this motor is built to withstand the rigors of continuous duty cycles. Its compact design and high-speed capabilities make it an excellent choice for applications in industries such as manufacturing, material handling, and food processing, where reliability and precision are paramount.
Top product features:
- Three-phase design
- Continuous duty cycle
- 145TC frame
Top product applications:
- Pumps
- Conveyors
- Machine tools
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 575V AC, Full Load Amps 2.4 A, 145TC Frame, Torque 6 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 73.00
Product info last updated on April 12, 2026 4:15am UTC
Category: Motors
