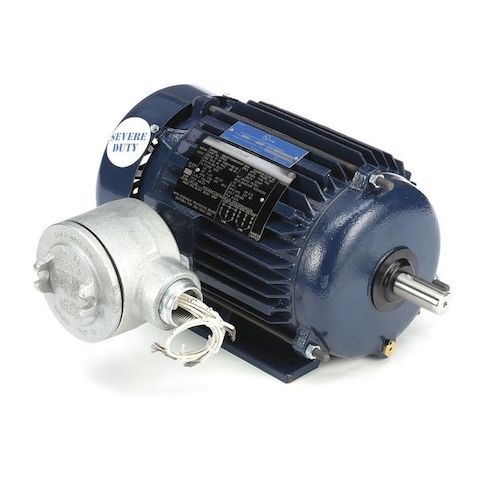

HazLoc Motor, 1-1/2 HP, 1755 RPM, 145T MPN:145TTGN6526
HazLoc Motor, 1-1/2 HP, 1755 RPM, 145T
The HazLoc Motor from Leeson is a reliable and efficient solution for hazardous locations. Designed for three-phase applications, this 1.5 HP motor operates at 1755 RPM and is suitable for use in environments with Class I, Class II, and T3B temperature ratings. With a totally enclosed fan-cooled design, it provides optimal performance and protection in harsh conditions. The motor's 1.15 service factor and T-Stat thermal protection ensure reliable operation, while its Class F insulation meets the highest standards of electrical safety. Suitable for a wide range of applications, including industrial and commercial settings, this motor is an excellent choice for hazardous location requirements.
Top product features:
- Three-phase design
- Totally enclosed fan cooling
- Thermal protection with T-Stat
Top product applications:
- Oil and Gas Pumps
- Industrial Laundry Equipment
- Food Processing Machinery
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 4.6/2.3 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.81
- Package Width: 14.31
- Package Height: 9.38
- Package Weight: 76.00
Product info last updated on February 3, 2026 12:37am UTC
Category: Motors
