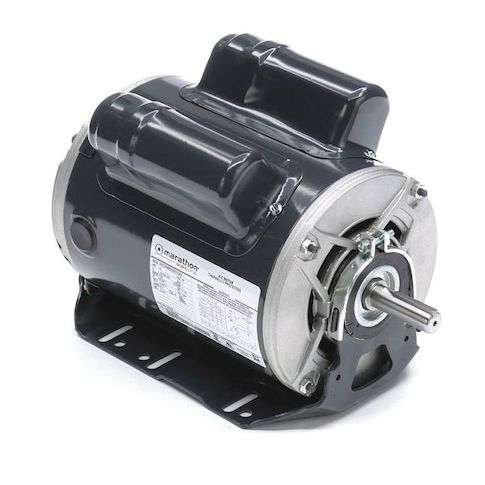

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame MPN:5KCR49SN0012X
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame
This 1.5 HP single-phase motor is designed for general purpose applications and features a capacitor-start/run design for efficient operation. Suitable for use in a variety of settings, including industrial and commercial environments, it offers a reliable and consistent performance. The motor's open drip-proof enclosure provides protection against dust and water, making it ideal for use in harsh conditions. With a continuous duty cycle and thermal protection, it can operate for extended periods without overheating. Its compact size and lightweight design make it easy to install and maintain, making it a versatile solution for a range of applications.
Top product features:
- Capacitor-start/run design provides efficient operation
- Single-phase motor design allows for use in various applications
- Open drip-proof enclosure protects against dust and water
Top product applications:
- Pumps for residential or commercial water supply systems
- Fans for general ventilation and air circulation
- Conveyor belts for light to medium-duty material handling
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.2/9.1 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.63
- Package Width: 9.88
- Package Height: 7.50
- Package Weight: 35.00
Product info last updated on February 10, 2026 11:40am UTC
Category: Motors
