Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145T Frame MPN:145TBFR5303
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145T Frame

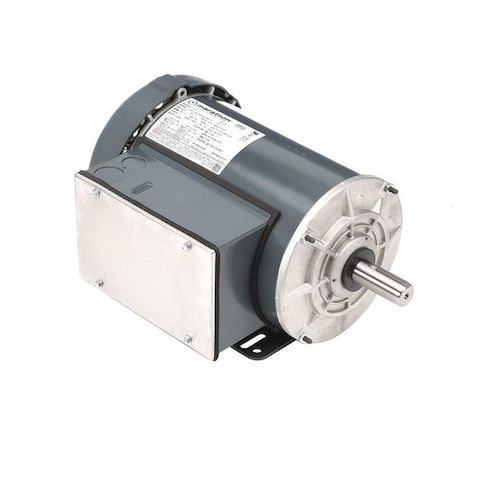

This 2 horsepower single-phase motor is designed for general purpose applications, featuring a capacitor-start/run design for efficient operation. It's suitable for use at 115/208-230V AC voltage and has a nameplate RPM of 3,510. The motor is totally enclosed fan cooled, providing protection from dust and moisture, and is rated for continuous duty cycles. With a service factor of 1.15, it can handle demanding loads. This motor is ideal for use in applications such as pumps, fans, and conveyor systems, and its compact 145T frame makes it a great choice for space-constrained environments.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor protection and reduced noise
- Capacitor-Start/Run motor design for efficient and reliable operation
- Single Phase motor design for use in a variety of applications
Top product applications:
- General purpose industrial machinery
- Industrial laundry equipment
- Pumps and compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.0/10.0-9.0 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 39.00
Product info last updated on April 7, 2026 10:12am UTC
Category: Motors
