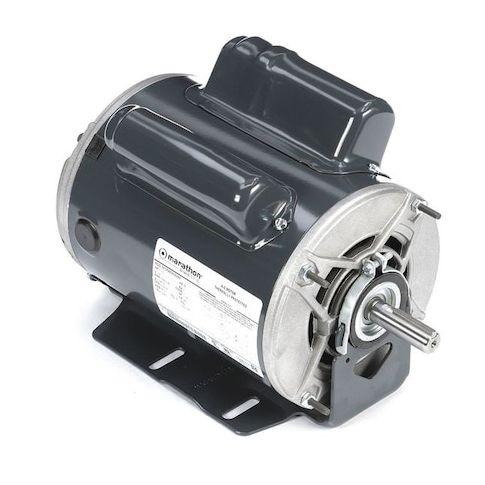

Capacitor-Start/Run General Purpose Motor, 1 hp, 1/3 hp HP, 115V AC Voltage, 56 Frame MPN:5KCR49SN3009X
Capacitor-Start/Run General Purpose Motor, 1 hp, 1/3 hp HP, 115V AC Voltage, 56 Frame
The Leeson Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various industrial applications. With a continuous duty cycle and 1.15 service factor, this motor can handle demanding tasks with ease. Suitable for use in environments with a maximum ambient temperature of 40°C, it's perfect for factories, warehouses, and other commercial settings. Its open drip-proof design and single-phase operation make it easy to install and maintain. With a 56 frame and two speed options, this motor can be used in a variety of applications, including conveyor systems, pumps, and fans.
Top product features:
- Capacitor-start/run design allows for efficient starting and operation of the motor
- Single-phase motor design enables operation on standard household AC voltage
- Open drip-proof enclosure design provides protection against dust and water ingress
Top product applications:
- Industrial conveyor belts
- Pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp, 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 10.8/7.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.63
- Package Width: 9.88
- Package Height: 7.50
- Package Weight: 30.00
