Hazardous Loc Mtr, 1-Ph, EPFC, 1/4 HP, T3B MPN:056C11G5303
Hazardous Loc Mtr, 1-Ph, EPFC, 1/4 HP, T3B

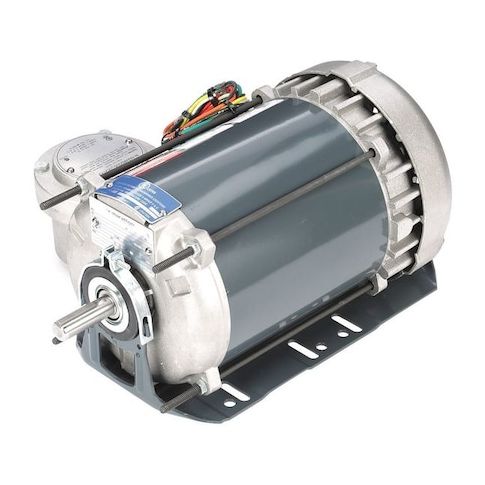

This Leeson Hazardous Location Motor is designed for use in hazardous environments, meeting Class I, Class II, and T3B temperature codes. With a single-phase, capacitor-start design and 1/4 horsepower rating, it's suitable for applications requiring continuous duty cycles. The motor operates at 1,140 RPM and 115V AC, with a maximum ambient temperature of 40 degrees C. Its totally enclosed fan-cooled design ensures efficient cooling and reduced maintenance. Ideal for use in industries such as oil and gas, chemical, and pharmaceutical, this motor provides reliable operation in harsh environments, reducing downtime and increasing productivity.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor cooling and reliability
- Motor Design Capacitor-Start for efficient starting and reduced wear on the motor
- Continuous Duty Cycle for uninterrupted operation in demanding applications
Top product applications:
- Pumps for hazardous locations such as chemical plants or oil refineries
- Fans for hazardous areas such as mines or offshore platforms
- Power tools such as drills or saws for use in hazardous environments
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 31.00
