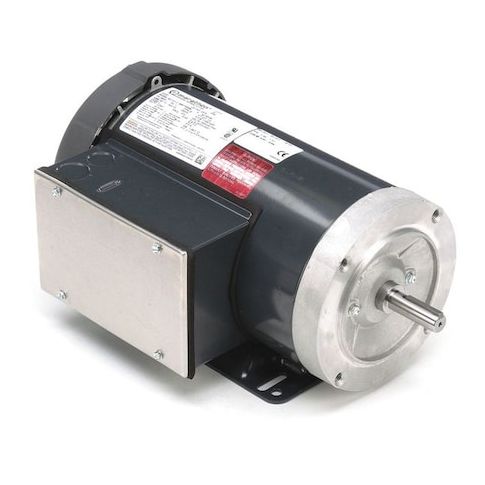

GP Motor, Cap-Strt/Cap-Run, TEFC, 2 HP MPN:056B17F5306
GP Motor, Cap-Strt/Cap-Run, TEFC, 2 HP
This Leeson 2 HP General Purpose Motor is designed for a wide range of applications, including industrial and commercial use. Its capacitor-start/run design provides efficient operation and reliable performance. The motor is suitable for use in environments with a maximum ambient temperature of 40 degrees C and is protected against overloads. Its totally enclosed fan-cooled design makes it ideal for applications where dust and moisture are present. The motor is also suitable for use in applications with a 208V power supply, making it a versatile option for various industrial and commercial settings.
Top product features:
- Cap-Strt/Cap-Run design for efficient operation
- Totally Enclosed Fan Cooled (TEFC) design for reliable cooling
- Continuous duty cycle for high usage applications
Top product applications:
- General purpose pumps
- Industrial machinery
- Material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 20.0/10.8-10.0 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 51.00
Product info last updated on February 9, 2026 1:00pm UTC
Category: Motors
