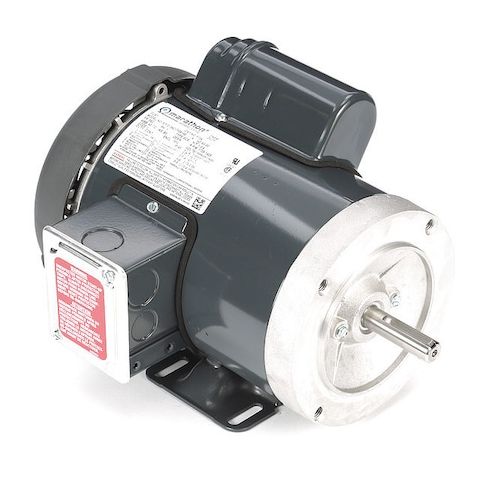

Capacitor-Start General Purpose Farm Duty Motor, 1 HP, 115/208-230V AC Voltage, 56C Frame MPN:056C17F5914
Capacitor-Start General Purpose Farm Duty Motor, 1 HP, 115/208-230V AC Voltage, 56C Frame
This 1 HP, 115/208-230V AC voltage capacitor-start general purpose farm duty motor from Leeson is designed for heavy-duty applications in agricultural settings. Suitable for continuous duty cycles, it features a rigid base mounting type and totally enclosed fan-cooled design for optimal performance and protection. The motor's 1,725 RPM nameplate speed and 1.15 service factor ensure reliable operation in a variety of environments. Its use is recommended for applications such as irrigation pumps, water wells, and farm equipment, where high torque and efficiency are required. The motor's compact size and durable construction make it an ideal choice for farm duty applications.
Top product features:
- Totally Enclosed Fan Cooled design provides protection against dust and moisture
- Capacitor-Start motor design allows for efficient starting and reduced energy consumption
- Single Phase operation enables use in a variety of applications
Top product applications:
- Industrial irrigation pumps
- Farm machinery and equipment
- Generators and water pumps for rural areas
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.4/6.8-6.7 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 35.00
Product info last updated on February 10, 2026 8:16pm UTC
Category: Motors
