Hazardous Loc Mtr, Cap Strt/Ind Run, 1/3HP MPN:056C17G5320
Hazardous Loc Mtr, Cap Strt/Ind Run, 1/3HP

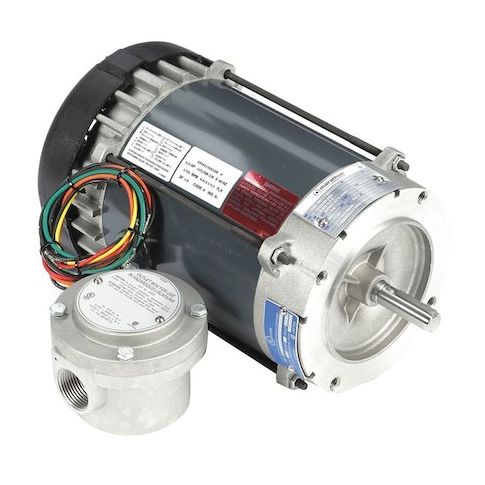

This Leeson Hazardous Location Motor is designed for single-phase applications in hazardous environments, featuring a capacitor-start design and a 1/3 horsepower rating. It operates at 1,725 RPM and is suitable for use in Class I and Class II locations with a maximum ambient temperature of 40°C. The motor's totally enclosed fan-cooled design provides reliable operation in harsh conditions. Ideal for use in industrial settings, such as oil and gas refineries, chemical plants, and other hazardous locations, this motor offers a cost-effective solution for applications requiring continuous operation. Its compact size and durable construction make it a reliable choice for demanding environments.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Motor Design Capacitor-Start for Efficient Starting and Operation
- Hazardous Location Classification for Use in Hazardous Environments
Top product applications:
- Industrial control panels
- Pumps and water treatment systems in hazardous locations
- Hazardous area lighting systems
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.1-3.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 27.00
