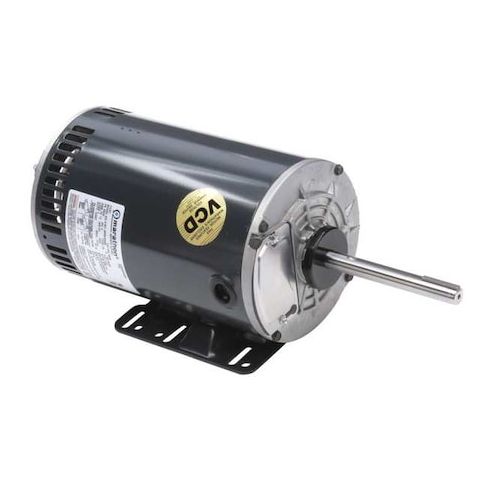

Condenser Fan Motor, 1 hp MPN:056T8O5306
Condenser Fan Motor, 1 hp
This Leeson 1 hp three-phase condenser fan motor is designed for continuous operation in a variety of applications, including commercial and industrial HVAC systems. Its 850 RPM nameplate speed and 750 W output make it suitable for use in condenser units, rooftop units, and other equipment requiring a reliable and efficient motor. The motor's open air over design and rigid base mounting make it easy to install and maintain, while its Class H insulation and automatic thermal protection ensure reliable operation in temperatures up to 70°C. Ideal for use in data centers, hospitals, and other facilities requiring reliable cooling systems.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Thermal protection with auto shutdown
Top product applications:
- HVAC Systems
- Air Handling Units
- Packaged Unit Coolers
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.1-5.3/2.6 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.88
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 49.00
Product info last updated on February 13, 2026 2:13pm UTC
Category: Motors
