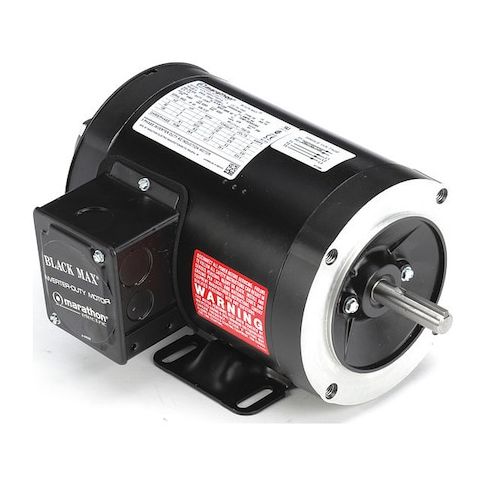

Vector Motor, 1/2 HP, 1.52 lb-ft, 575V MPN:056H17T5311
Vector Motor, 1/2 HP, 1.52 lb-ft, 575V
This 1/2 HP three-phase Vector Motor from Leeson is designed for high-torque applications. With a nameplate RPM of 1,725 and a speed range of 1,000:1, it provides efficient operation in a variety of settings. Suitable for use in continuous duty cycles, this motor is ideal for applications such as conveyor systems, pumps, and fans. Its compact 56C frame and CW/CCW shaft rotation make it a versatile solution for industrial use. With a 1.52 ft-lb torque and 0.65 A full load amps, it offers reliable performance in demanding environments, making it a valuable addition to any industrial setup.
Top product features:
- Three-phase design
- 1,725 nameplate RPM
- 1,000:1 speed range
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design Three-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 575V AC, Full Load Amps 0.65 A, 56C Frame, Torque 1.52 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 40.00
