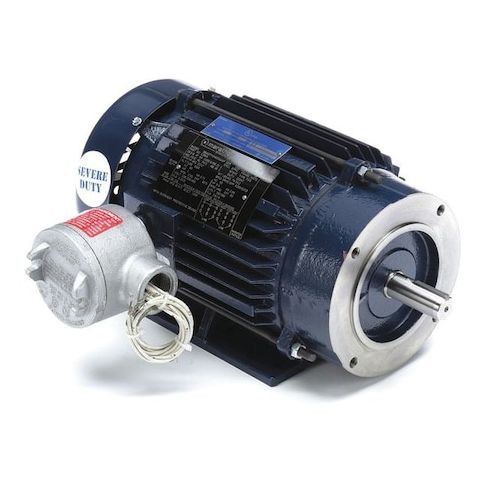

HazLoc Motor, 1 HP, 1735 RPM, 208-230/460V MPN:143TTGN6551
HazLoc Motor, 1 HP, 1735 RPM, 208-230/460V
The HazLoc Motor from Leeson is a reliable and efficient solution for hazardous location applications. Designed for use in areas where flammable gases or vapors are present, this three-phase motor operates at 1.735 RPM and 3.0-3.0/1.5 amps, making it suitable for a variety of applications, including chemical processing, oil and gas, and pharmaceutical manufacturing. Its totally enclosed fan-cooled design and Class F insulation ensure safe and reliable operation in temperatures up to 40°C. With a 1.15 service factor and continuous duty cycle, this motor provides long-lasting performance and minimizes downtime, making it an ideal choice for industries that require high-quality, hazardous location motors.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operation in harsh environments
- Three-Phase motor design allows for efficient and powerful operation
- Thermal Protection T-Stat ensures motor safety and prevents overheating
Top product applications:
- Material Handling Equipment
- Pump Applications in Hazardous Locations
- Oil and Gas Industry Equipment
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,735 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.0-3.0/1.5 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.81
- Package Width: 14.31
- Package Height: 9.38
- Package Weight: 76.00
Product info last updated on March 1, 2026 4:10am UTC
Category: Motors
