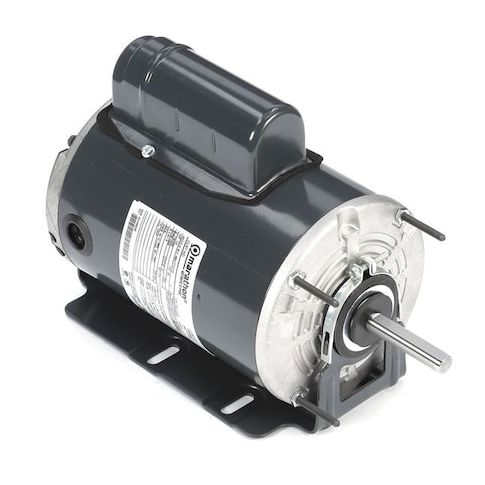

Permanent Split Capacitor General Purpose Farm Duty Motor, 1/3 HP, 48Y Frame, 115/230V AC Voltage MPN:048A17T237
Permanent Split Capacitor General Purpose Farm Duty Motor, 1/3 HP, 48Y Frame, 115/230V AC Voltage
This 1/3 HP Permanent Split Capacitor General Purpose Farm Duty Motor from Leeson is designed for heavy-duty applications on farms and in agricultural settings. Its single-phase motor operates at 1,625 RPM and is suitable for continuous use in temperatures up to 40°C. The motor's totally enclosed air-over design provides protection from dust and moisture, while its cradle base mounting type offers easy installation. Ideal for powering pumps, irrigation systems, and other equipment, this motor provides reliable performance and long-lasting durability, making it a valuable addition to any farm or agricultural operation.
Top product features:
- Permanent Split Capacitor design provides efficient operation and reliable starting
- Totally Enclosed Air-Over enclosure design protects against dust and moisture
- Continuous duty cycle allows for uninterrupted operation under heavy loads
Top product applications:
- Farm equipment
- Pumps and irrigation systems
- Water treatment plants
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.75
- Package Width: 7.88
- Package Height: 8.75
- Package Weight: 23.00
Product info last updated on February 23, 2026 10:25pm UTC
Category: Motors
