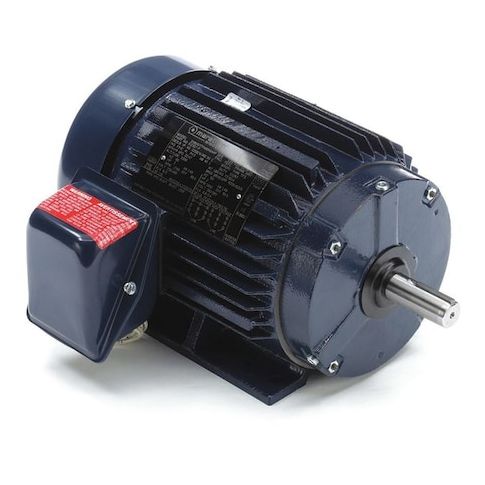

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM MPN:145TTFN16045
Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM
This 2 HP, 145T frame, three-phase general purpose motor from Leeson is designed for a wide range of industrial applications, including manufacturing, material handling, and HVAC systems. With a nameplate RPM of 1755, this motor provides reliable and efficient power to drive machinery and equipment. Its totally enclosed fan cooled design ensures optimal performance in harsh environments, while its cast iron frame and ball bearings provide durability and long lifespan. Suitable for continuous duty, this motor is ideal for applications requiring high torque and low vibration, such as conveyor systems, pumps, and fans.
Top product features:
- Three-phase design allows for efficient power distribution and reduced energy loss
- Totally enclosed fan cooled motor enclosure design provides reliable cooling and protection in harsh environments
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor
Top product applications:
- Industrial Laundry Equipment
- Pumps and Pumping Systems
- Generators and Power Generators
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1755 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.75
- Package Weight: 72.00
Product info last updated on February 2, 2026 1:30am UTC
Category: Motors
