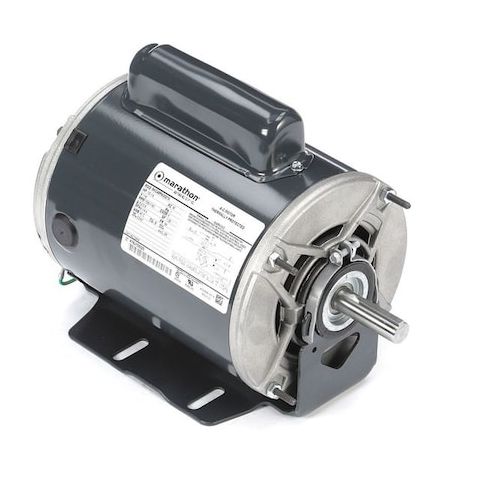

GeneralPurposeMotor, 56, 0.17hp;1/2hp MPN:056C64DRS40002A1
GeneralPurposeMotor, 56, 0.17hp;1/2hp
This versatile General Purpose Motor from Leeson is designed for a wide range of applications, including fans and blowers. With a single-phase, capacitor-start/run design, it provides reliable operation at 1/6 or 1/2 horsepower. The motor's compact 56 frame size makes it easy to integrate into various systems, and its open drip-proof enclosure ensures optimal performance in harsh environments. Suitable for continuous duty cycles, this motor is ideal for use in residential, commercial, and industrial settings, including HVAC systems, ventilation systems, and air handling units. Its compact size and high efficiency make it a valuable addition to any project.
Top product features:
- Capacity-start/run motor design
- Single phase operation
- Two speed capability
Top product applications:
- HVAC Fans
- Pump and Blower Applications
- Residential and Commercial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/6 hp, 1/2 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 7.7/4.7 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.38
- Package Width: 9.06
- Package Height: 5.38
- Package Weight: 28.00
Product info last updated on February 4, 2026 1:41pm UTC
Category: Motors
