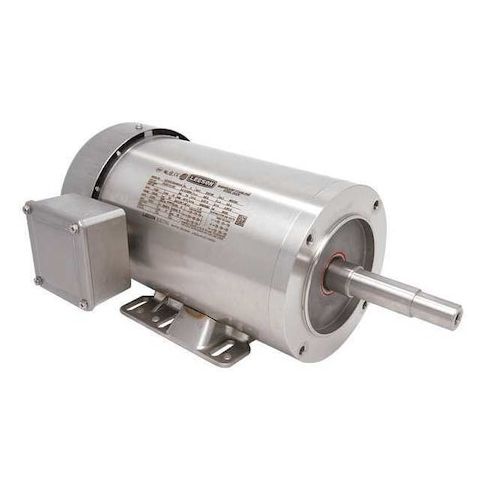

Washdown Motor, 2 HP, 145JM Frame, 17 in. L MPN:122211.00
Washdown Motor, 2 HP, 145JM Frame, 17 in. L
This 2 HP washdown motor from Leeson is designed for use in harsh environments and is suitable for applications such as food processing, pharmaceutical manufacturing, and chemical handling. Its totally enclosed fan-cooled design ensures reliable operation in wet or corrosive conditions. The motor's high service factor and continuous duty cycle make it ideal for demanding applications. With a compact 145JM frame and CW/CCW shaft rotation, this motor offers flexibility and ease of installation. Its NEMA Design B rating ensures compliance with industry standards, making it a reliable choice for a wide range of washdown applications.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment
- Motor Service Factor of 1.15 allows for continuous operation at elevated loads
- NEMA Design B meets the requirements for high-torque applications and provides a long motor life
Top product applications:
- Food Processing
- Packaging Machinery
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145JM Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.69
- Package Width: 10.63
- Package Height: 11.25
- Package Weight: 58.00
Product info last updated on March 15, 2026 12:04am UTC
Category: Motors
