Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:119487.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G507353897

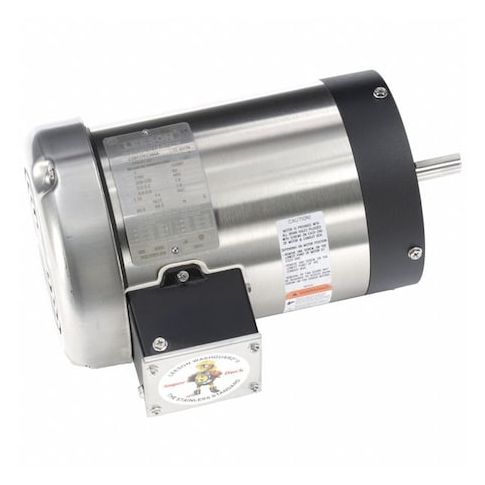

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM
The Leeson Three-Phase Washdown Motor is a reliable and efficient solution for heavy-duty applications. This 1 hp motor is designed for continuous use in harsh environments, with a totally enclosed air-over design that protects against water and dust. Its 1,760 RPM nameplate speed ensures precise control and performance. Suitable for use in food processing, chemical plants, and other industries, this motor offers a high service factor of 1.15 and thermal protection for extended lifespan. Its compact 56C frame and CW/CCW rotation make it easy to integrate into existing systems, providing a cost-effective and durable solution for demanding applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed air-over motor enclosure for protection from washdown environments
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Food Processing
- Chemical Processing
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 11.00
- Package Height: 11.80
- Package Weight: 40.20
Product info last updated on March 7, 2026 7:20am UTC
Category: Motors
