WashdownMotor, 5hp, 3495RPMTC, 230/460VAC

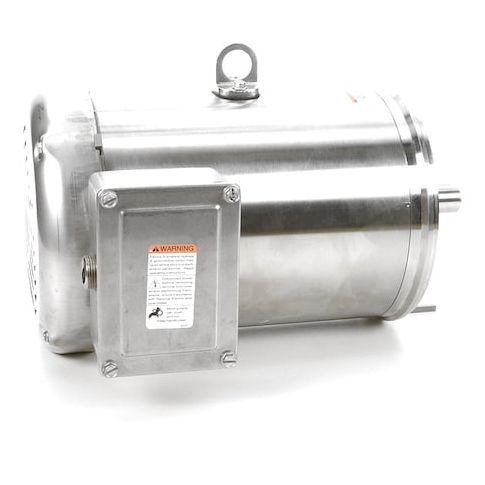

This 5hp Marathon Washdown Motor is designed for heavy-duty applications in harsh environments, featuring a totally enclosed fan-cooled design and a high service factor for continuous operation. Suitable for use in washdown areas, food processing, and pharmaceutical facilities, it provides reliable performance and long lifespan. With a 3,495 RPM nameplate speed and 1.15 service factor, it can handle demanding tasks while minimizing downtime. The motor's compact 184TC frame and CW/CCW rotation ensure easy integration into existing systems. Its NEMA Design B rating and 40°C max ambient temperature make it ideal for use in a variety of industries where reliability is crucial.
Top product features:
- Totally Enclosed Fan Cooled design for improved cooling and reduced maintenance
- Three-Phase motor design for efficient power usage and reduced energy costs
- Continuous Duty Cycle for uninterrupted operation in demanding applications
Top product applications:
- Food Processing Equipment
- Pump and Blower Applications
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.2-12.0/6.0 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.80
- Package Height: 14.00
- Package Weight: 75.00
