Capacitor-Start General Purpose Motor, 3 HP, 56HC Frame, 208-230V AC Voltage, 3, 450 Nameplate RPM MPN:115048.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G502014984

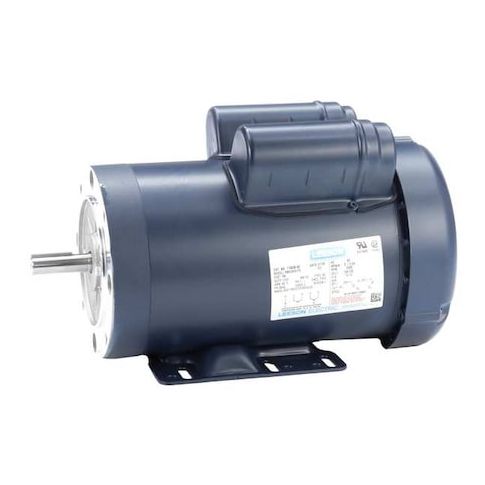

Capacitor-Start General Purpose Motor, 3 HP, 56HC Frame, 208-230V AC Voltage, 3, 450 Nameplate RPM
This Leeson 3 HP capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its 56HC frame and 208-230V AC voltage make it a versatile option for various settings. The motor features a bearing protection system and a durable enamel finish, ensuring reliable operation and long lifespan. With a maximum ambient temperature of 104°F and a continuous duty cycle, this motor can handle demanding tasks. Suitable for general applications, it's an ideal choice for factories, warehouses, and other industrial environments where efficiency and reliability are essential.
Top product features:
- Double Shield Bearing Protection
- Enamel Finish
- Inverter Rated No
Top product applications:
- General Application
- General Purpose Motor
- General Application
General Purpose Motor, Bearing Protection Double Shield, Body Dia. 7.7 in, Bolt Circle Dia. 5 5/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Enamel, Frame 56HC, Hz 60 Hz, Full Load Amps 14.0-13.0, Height 8 1/2 in, HP 3, Includes Key, Ins. Class F, Inverter Rated Not Inverter Rated, Inverter Rating No, Lead Length 6 in, Length Less Shaft 12 in, Manufacturers Warranty Length 18 mo, Max. Ambient Temp. 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.10
- Package Width: 10.90
- Package Height: 11.50
- Package Weight: 49.85
Product info last updated on February 14, 2026 12:26pm UTC
Category: Motors
