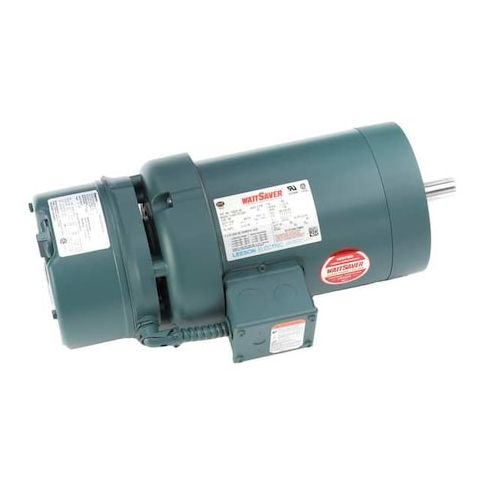

Three-Phase Brake Motor, 1 hp HP, 143TC Frame, 208-230/460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:122251.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G502014809
Three-Phase Brake Motor, 1 hp HP, 143TC Frame, 208-230/460V AC Voltage, 1, 760 RPM Nameplate RPM
This three-phase brake motor is designed for heavy-duty applications requiring continuous operation. With a 1 hp rating and 1,760 RPM nameplate speed, it delivers reliable performance in a variety of settings. Suitable for use at 208V, it's ideal for industries such as manufacturing, oil and gas, and food processing. The motor's totally enclosed fan-cooled design and compact 143TC frame make it easy to integrate into existing systems. Its continuous duty cycle and high service factor ensure long motor life and reduced maintenance costs. Perfect for applications where precise control and consistent performance are critical.
Top product features:
- Three-phase design for efficient power transmission
- Totally Enclosed Fan Cooled enclosure for reduced noise and increased durability
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Conveyor systems
- Machine tools
- Packaging equipment
Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.7 A Full Load Amps, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 45.10
Product info last updated on February 16, 2026 4:51pm UTC
Category: Motors
