WashdownMotor, 1hp, 3450RPM, 230/460VAC MPN:191486.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G500722959

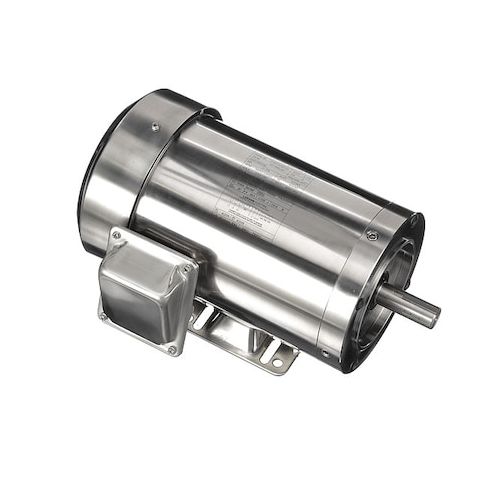

WashdownMotor, 1hp, 3450RPM, 230/460VAC
The Leeson Washdown Motor is a high-performance solution for demanding industrial applications. Its 1hp, 3450RPM three-phase design provides efficient operation in harsh environments. Suitable for use at 230/460V AC, this motor is ideal for washdown applications in the food processing, pharmaceutical, and chemical industries. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable performance in extreme temperatures and conditions. With a continuous duty cycle and manual thermal protection, this motor provides long-lasting operation and reduced maintenance needs, making it an excellent choice for applications requiring high performance and reliability.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Continuous Duty Cycle for reliable operation in demanding applications
- Removable Base design for easy installation and maintenance
Top product applications:
- Industrial Laundry Equipment
- Pump Stations
- Food Processing Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 51.00
Product info last updated on February 12, 2026 8:03pm UTC
Category: Motors
