Auger Duty Motor, 1/2 HP, 115/230V AC, 1, 800 Nameplate RPM, 56YZ Frame MPN:117888.00
Auger Duty Motor, 1/2 HP, 115/230V AC, 1, 800 Nameplate RPM, 56YZ Frame

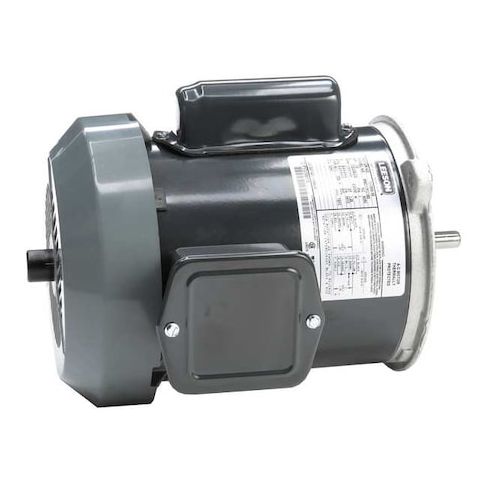

This 1/2 HP auger duty motor from Leeson is a reliable and efficient solution for various applications. Designed for continuous duty, it features a totally enclosed fan-cooled enclosure and a manual reset thermal protection to ensure safe operation. With a nameplate RPM of 1,800 and a single-phase capacitor-start design, this motor is suitable for use in auger applications, such as conveying and mixing materials. Its compact 56YZ frame and CW/CCW shaft rotation make it easy to integrate into existing systems. Ideal for use in various industries, including food processing, agriculture, and manufacturing.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Manual motor thermal protection for safe operation
- Continuous duty cycle capability for heavy use applications
Top product applications:
- Pumps and well systems
- Mixing tanks and vats
- Conveying and auger systems
Auger Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.4/4.0-4.2 A, 56YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 10.90
- Package Height: 10.10
- Package Weight: 22.70
Product info last updated on February 3, 2026 10:17pm UTC
Category: Motors
