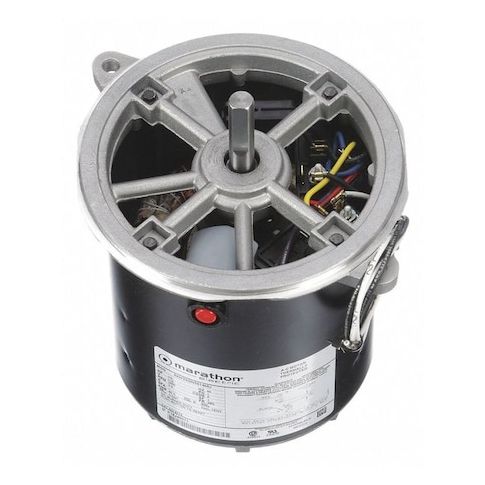

Oil Burner Motor, 1/3 hp MPN:5KH33GN5014U
Oil Burner Motor, 1/3 hp
This 1/3 hp oil burner motor from Leeson is a reliable and efficient solution for various applications. Suitable for use in single-phase HVAC systems, it offers a continuous duty cycle and can withstand temperatures up to 40 degrees C. The totally enclosed nonventilated design protects against dust and moisture, while the steel frame ensures durability. With a nameplate RPM of 3,450 and a service factor of 1, this motor is perfect for use in residential and commercial heating systems, as well as in industrial settings where a compact and reliable motor is required.
Top product features:
- Single Phase Motor Design
- Split-Phase Motor Design
- Totally Enclosed Nonventilated Motor Enclosure
Top product applications:
- Oil Burner
- HVAC System
- Industrial Equipment
HVAC Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 48N Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.63
- Package Width: 6.94
- Package Height: 7.50
- Package Weight: 15.00
Product info last updated on February 13, 2026 1:25am UTC
Category: Motors
