Washdown Motor, 1 HP, 1740 RPM MPN:191558.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4842881

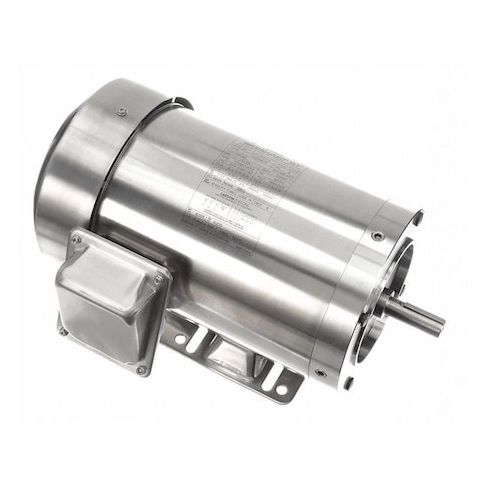

Washdown Motor, 1 HP, 1740 RPM
This 1 HP, 1740 RPM washdown motor from Leeson is designed for use in harsh environments where high pressure washdown is required. With a three-phase design and totally enclosed fan cooled enclosure, it provides reliable operation and protection from dust and water. Its continuous duty cycle and NEMA Design B rating make it suitable for demanding applications such as food processing, pharmaceutical manufacturing, and chemical plants. The motor's compact size and lightweight design also make it easy to install and maintain, reducing downtime and increasing overall efficiency. Ideal for use in a variety of industries where sanitation is crucial.
Top product features:
- Totally Enclosed Fan Cooled design for a clean and safe operating environment
- Three-Phase motor design for efficient and reliable operation
- Continuous Duty Cycle for uninterrupted performance in demanding applications
Top product applications:
- Pump and pumping systems for water treatment plants
- Industrial laundries and washdown applications
- Food processing and packaging machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.2-3.0/1.5 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 11.02
- Package Height: 9.65
- Package Weight: 47.00
Product info last updated on February 7, 2026 6:22am UTC
Category: Motors
