Washdown Motor, 1 HP, Face/Base, 60 Hz, CWSE MPN:119476.00

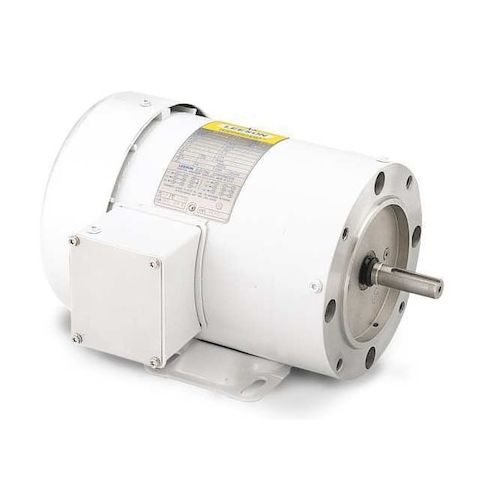

Washdown Motor, 1 HP, Face/Base, 60 Hz, CWSE
This 1 HP washdown motor from Leeson is designed for heavy-duty applications in harsh environments. Suitable for use in 208V and 230/460V AC systems, it offers a continuous duty cycle and can withstand temperatures up to 40 degrees C. The motor's totally enclosed fan-cooled design provides reliable operation and protection from contamination. Ideal for use in food processing, pharmaceutical, and chemical plants, this motor's robust construction and high service factor make it an excellent choice for applications requiring high efficiency and reliability. Its compact size and CE compliance also make it suitable for a wide range of industrial applications.
Top product features:
- Totally Enclosed Fan Cooled design
- Three-Phase motor design
- Continuous Duty Cycle operation
Top product applications:
- Food Processing
- Pump and Equipment Mounting
- Automotive Washing and Cleaning
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.90
- Package Height: 11.10
- Package Weight: 38.60
