Washdown Motor, 1 HP, Face/Base, 56C Frame MPN:119478.00

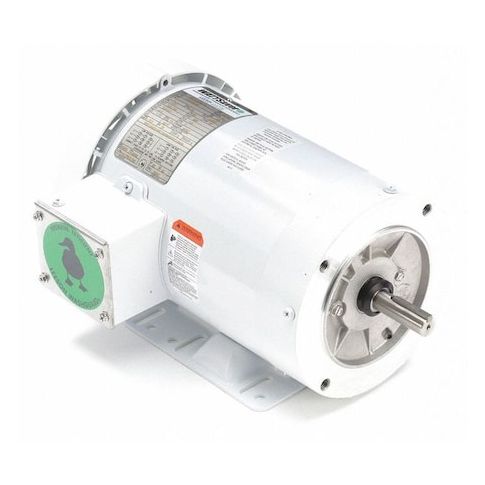

Washdown Motor, 1 HP, Face/Base, 56C Frame
This 1 HP washdown motor from Leeson is designed for high-pressure cleaning applications, featuring a totally enclosed fan-cooled enclosure and a rugged 56HC frame. Suitable for use in harsh environments, it operates at 1,170 RPM and provides continuous duty cycle performance. The motor's three-phase design and 230/460V AC voltage rating make it an ideal choice for industrial settings. Its compact size and lightweight design also make it easy to install and maintain. Ideal for use in food processing, pharmaceutical, and chemical plants, this motor provides reliable and efficient performance in demanding washdown applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Three-Phase motor design for efficient power distribution and reduced energy consumption
- NEMA Design B for high efficiency and reliable operation in a variety of applications
Top product applications:
- Water Treatment Plants
- Chemical Processing Facilities
- Food and Beverage Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,170 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.8/1.9 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 11.00
- Package Height: 11.50
- Package Weight: 44.70
Product info last updated on March 3, 2026 4:34pm UTC
Category: Motors
