Washdown Motor, 1-1/2HP, 3-Phase, 56C Frame MPN:119480.00

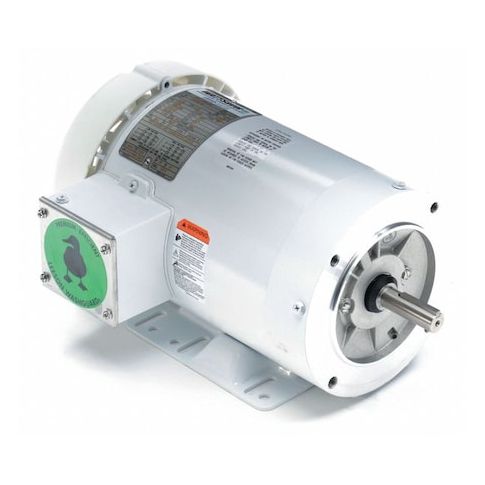

Washdown Motor, 1-1/2HP, 3-Phase, 56C Frame
This 1.5HP, 3-phase washdown motor from Leeson is designed for demanding applications in harsh environments. Its totally enclosed fan-cooled design and Class F insulation ensure reliable operation in temperatures up to 40°C. With a continuous duty cycle and NEMA Design B rating, this motor is ideal for use in food processing, pharmaceutical, and other industries where cleanliness and sanitation are critical. Its compact size and CW/CCW rotation make it versatile for various applications, including conveyor systems, pumps, and mixers. With a 1.15 service factor and no thermal protection, this motor provides efficient and reliable operation in high-demand situations.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from environmental factors
- Continuous duty cycle for high usage and reliability
- CW/CCW motor shaft rotation for flexibility in installation and application
Top product applications:
- Pumping stations
- Food processing equipment
- Laundry machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 11.00
- Package Height: 11.90
- Package Weight: 46.00
Product info last updated on February 22, 2026 7:27am UTC
Category: Motors
