Washdown Motor, 2HP, Face/Base, 145TC Frame MPN:122185.00
Washdown Motor, 2HP, Face/Base, 145TC Frame

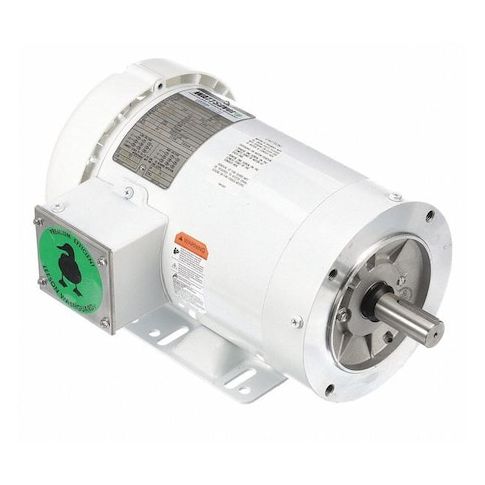

This 2HP washdown motor from Leeson is a reliable and efficient solution for harsh environments. Designed for three-phase applications, it operates at 3,490 RPM and is rated for continuous duty cycles. The motor's totally enclosed fan-cooled design and Class F insulation ensure optimal performance and longevity. With a service factor of 1.15, it can handle demanding tasks with ease. Suitable for use in washdown areas, food processing, and other industries where high-temperature and high-humidity conditions prevail, this motor is a valuable addition to any operation. Its compact design and easy installation make it a convenient choice for a variety of applications.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Water Treatment Plant
- Industrial Laundry
- Food Processing Plant
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.90
- Package Height: 11.20
- Package Weight: 45.70
Product info last updated on February 5, 2026 6:25pm UTC
Category: Motors
