Washdown Motor, 2 HP, Face/Base, 56C Frame MPN:119482.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4702437

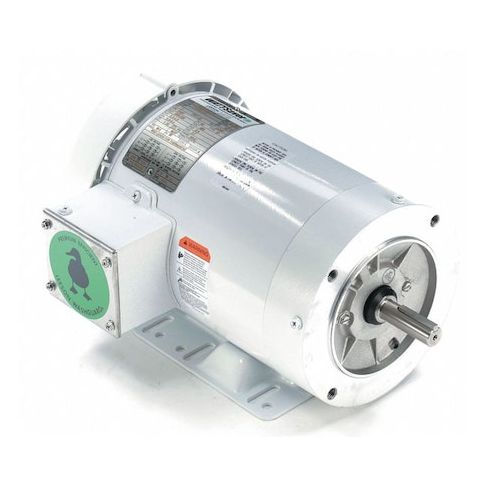

Washdown Motor, 2 HP, Face/Base, 56C Frame
This 2 HP washdown motor from Leeson is designed for harsh environments and demanding applications. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness is crucial, this motor features a totally enclosed fan-cooled design and a removable base for easy maintenance. With a high service factor and thermal protection, it can operate continuously in temperatures up to 40°C. Its compact size and lightweight design make it easy to install and transport. Ideal for applications such as pumps, mixers, and conveyor systems, this motor provides reliable and efficient operation in a wide range of settings.
Top product features:
- Totally Enclosed Fan Cooled design
- Three-Phase motor design
- Continuous Duty Cycle capability
Top product applications:
- Industrial laundry equipment
- Pumps and water treatment systems
- Food processing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 10.70
- Package Height: 11.50
- Package Weight: 45.60
Product info last updated on February 4, 2026 1:43pm UTC
Category: Motors
