Washdown Motor, 1HP, Face Mounting, 60/50Hz MPN:119468.00

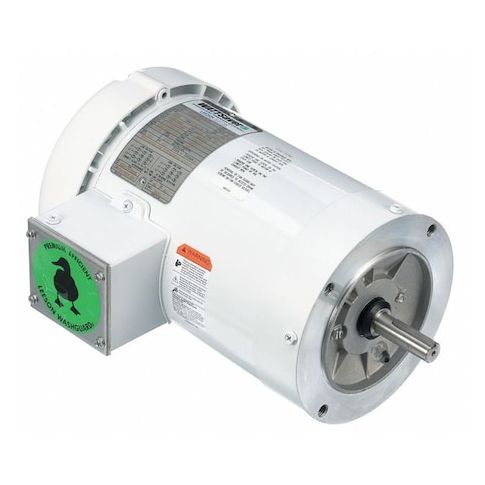

Washdown Motor, 1HP, Face Mounting, 60/50Hz
This 1HP washdown motor from Leeson is designed for harsh environments and demanding applications. With a totally enclosed fan-cooled design and NEMA Design B rating, it provides reliable operation and long lifespan. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness is critical, this motor can withstand washdown procedures and maintain performance. Its continuous duty cycle and 1.15 service factor ensure efficient operation, while its 56C frame and Class F insulation provide added durability. Perfect for applications requiring high reliability and efficiency, this motor is a great choice for businesses seeking a dependable solution.
Top product features:
- Face Mounting design
- Totally Enclosed Fan Cooled motor enclosure design
- Continuous duty cycle operation
Top product applications:
- High-pressure cleaning systems
- Food processing equipment
- Pulp and paper machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.80
- Package Height: 11.10
- Package Weight: 37.60
Product info last updated on January 27, 2026 11:59am UTC
Category: Motors
