Washdown Motor, 1-1/2HP, 1-15/16in Shaft L MPN:119469.00
Washdown Motor, 1-1/2HP, 1-15/16in Shaft L

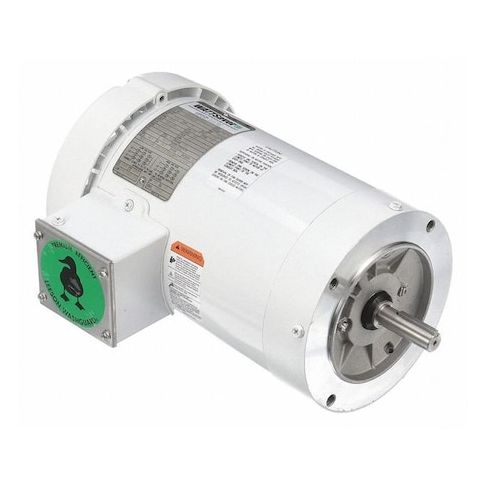

This 1.5HP washdown motor from Leeson is designed for use in harsh environments, featuring a totally enclosed fan-cooled design and a NEMA Design B rating. Suitable for continuous duty cycles, it can operate at 208V and is ideal for applications such as food processing, pharmaceutical manufacturing, and other industries where high sanitation standards are required. With a high service factor and no thermal protection, this motor is reliable and efficient, making it a valuable addition to any facility. Its compact size and robust construction also make it easy to integrate into existing systems.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing
- Packaging Machinery
- Water Treatment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 10.70
- Package Height: 11.20
- Package Weight: 43.40
Product info last updated on February 8, 2026 3:33pm UTC
Category: Motors
