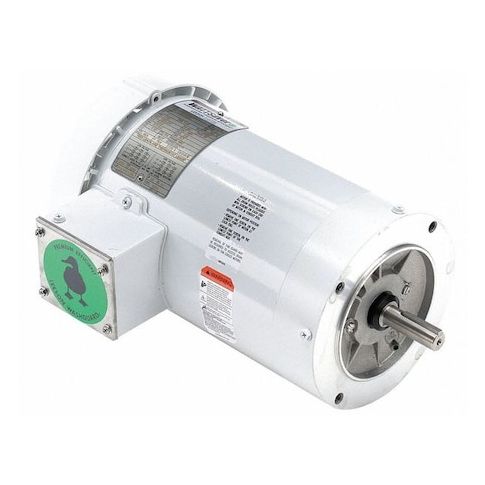

Washdown Motor, 2 HP, 1-15/16 in. Shaft L MPN:119471.00
Washdown Motor, 2 HP, 1-15/16 in. Shaft L
The Leeson Washdown Motor is a reliable and efficient solution for demanding applications. Suitable for use in harsh environments, this 2 HP motor features a totally enclosed fan-cooled design and a 1-15/16 inch shaft length. With a nameplate RPM of 1,745 and a continuous duty cycle, it can handle high-demand tasks with ease. The motor's three-phase design and NEMA Design B rating make it ideal for use in industrial settings, such as food processing, chemical manufacturing, and wastewater treatment. Its compact size and lightweight design also make it a great choice for OEM applications and machine builders.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Continuous duty cycle for long-term operation without interruption
- 56C Frame design for increased power density and efficiency
Top product applications:
- Food Processing
- Water Treatment Plants
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.90
- Package Height: 11.00
- Package Weight: 46.50
Product info last updated on February 6, 2026 11:59pm UTC
Category: Motors
