Washdown Motor, 3 HP, 1-15/16 in. Shaft L MPN:119473.00

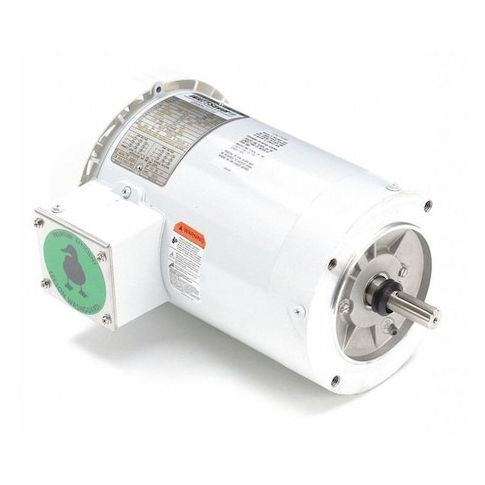

Washdown Motor, 3 HP, 1-15/16 in. Shaft L
This 3 HP washdown motor is designed for use in harsh environments where high moisture and cleaning are required. Its totally enclosed fan cooled (TEFC) design and NEMA Design B rating ensure reliable operation in temperatures up to 40°C. The motor's 1-15/16 in. shaft and C-face mounting type make it easy to integrate into existing systems. Suitable for continuous duty cycles, this motor is ideal for applications in food processing, pharmaceutical manufacturing, and other industries where cleanliness is critical. Its compact size and high efficiency make it a cost-effective solution for a wide range of washdown applications.
Top product features:
- Three-phase design
- Totally enclosed fan cooled enclosure
- Continuous duty cycle
Top product applications:
- Food Processing
- Pump and Fan Applications
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.90
- Package Height: 11.70
- Package Weight: 47.10
Product info last updated on April 15, 2026 10:42am UTC
Category: Motors
