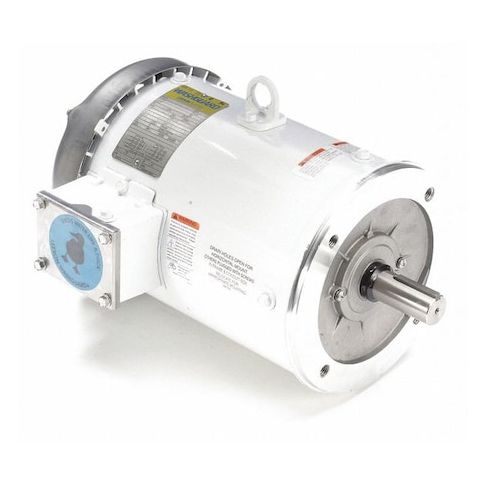

Washdown Motor, 5 HP, 184TC Frame, 60/50 Hz MPN:132440.00
Washdown Motor, 5 HP, 184TC Frame, 60/50 Hz
This 5 HP washdown motor from Marathon is designed for heavy-duty applications in harsh environments. Suitable for use at 208V and 200V, it offers flexibility in installation. The motor's totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in demanding conditions. Its continuous duty cycle and 1.15 service factor make it ideal for applications requiring high torque and power. The motor's CW/CCW rotation and removable base provide flexibility in installation and maintenance. Suitable for use in food processing, pharmaceutical, and other industries, this motor offers a reliable and efficient solution for washdown applications.
Top product features:
- Three-phase motor design for efficient operation
- Totally enclosed fan cooled enclosure for protection from environmental factors
- Continuous duty cycle for reliable performance in demanding applications
Top product applications:
- Food Processing
- Packaging Machinery
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.50
- Package Height: 13.70
- Package Weight: 87.00
