Washdown Motor, 5HP, Rigid Base, 184T Frame MPN:132202.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609215

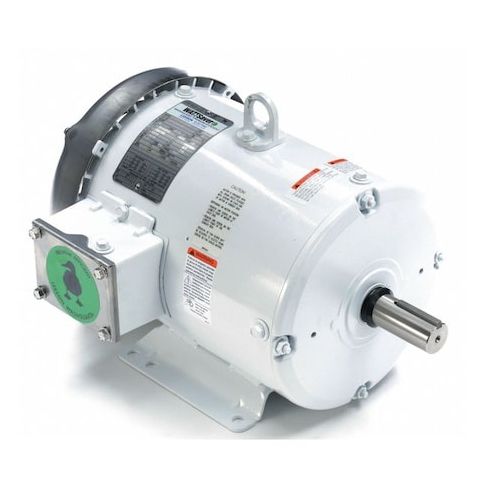

Washdown Motor, 5HP, Rigid Base, 184T Frame
This 5HP washdown motor from Marathon is designed for heavy-duty use in harsh environments. Its rigid base and 184T frame provide stability and durability, while its three-phase design and 3,515 RPM nameplate speed make it suitable for a wide range of applications, including food processing, pharmaceutical manufacturing, and chemical handling. The motor's totally enclosed fan-cooled design and Class F insulation ensure reliable operation in temperatures up to 40°C. With a continuous duty cycle and NEMA Design A rating, this motor is perfect for applications requiring high performance and reliability, including washdown areas, where cleaning and sanitation are critical.
Top product features:
- Three-phase design
- Totally enclosed fan cooled enclosure
- Continuous duty cycle
Top product applications:
- Washdown applications such as food processing
- Chemical processing and handling
- Pharmaceutical manufacturing and packaging
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,515 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.0/6.0 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 15.30
- Package Height: 13.50
- Package Weight: 88.00
Product info last updated on February 19, 2026 11:01am UTC
Category: Motors
