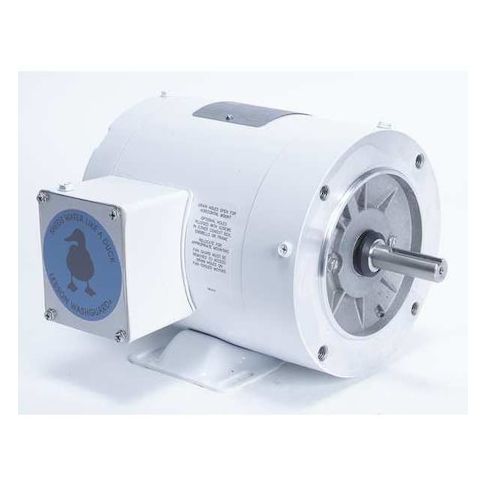

WashdownMotor, 1/2hp, 1725RPM, 230/460VAC MPN:113586.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609160
WashdownMotor, 1/2hp, 1725RPM, 230/460VAC
This 1/2HP, 3-phase washdown motor from Leeson is designed for heavy-duty use in harsh environments, making it ideal for applications in food processing, pharmaceutical, and chemical industries. Its totally enclosed, non-ventilated design protects against dust and moisture, ensuring reliable operation even in washdown areas. With a continuous duty cycle and 1.15 service factor, this motor provides efficient and consistent performance. Its compact size and CW/CCW rotation make it easy to integrate into existing systems, while its NEMA Design B rating ensures compliance with industry standards. Suitable for use at 208V, this motor offers flexibility and reliability in demanding applications.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure protects against environmental factors
- Operates at 1,725 RPM for high-speed applications
- Has a 1.15 service factor for increased power handling capacity
Top product applications:
- Food Processing Equipment
- Packaging Machinery
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.8/0.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.80
- Package Height: 11.50
- Package Weight: 25.20
Product info last updated on February 24, 2026 6:39pm UTC
Category: Motors
