Washdown Motor, 3/4HP, Face/Base, 56C Frame MPN:113587.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609136

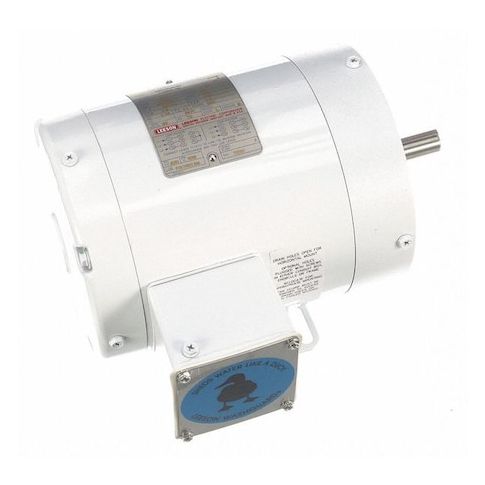

Washdown Motor, 3/4HP, Face/Base, 56C Frame
This 3/4HP washdown motor from Leeson is designed for use in harsh environments, featuring a totally enclosed non-ventilated (TEFC) enclosure and a NEMA Design B rating. Perfect for applications where exposure to water or chemicals is a concern, this motor can be used in washdown areas, food processing plants, and other industries where cleanliness is crucial. With a continuous duty cycle and a high service factor, this motor provides reliable operation and long lifespan. Its compact size and easy installation make it a great choice for new equipment or replacement motors in a variety of applications.
Top product features:
- Totally Enclosed Non-Ventilated Enclosure Design
- Motor Service Factor of 1.15 for Increased Efficiency
- Three-Phase Motor Design for High Power Density
Top product applications:
- Pumps
- Food Processing Equipment
- Chemical Processing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.5/1.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 10.70
- Package Height: 11.50
- Package Weight: 31.40
Product info last updated on March 11, 2026 10:59am UTC
Category: Motors
