Washdown Motor, 1-1/2 HP, Face/Base, 145TC MPN:121871.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609081

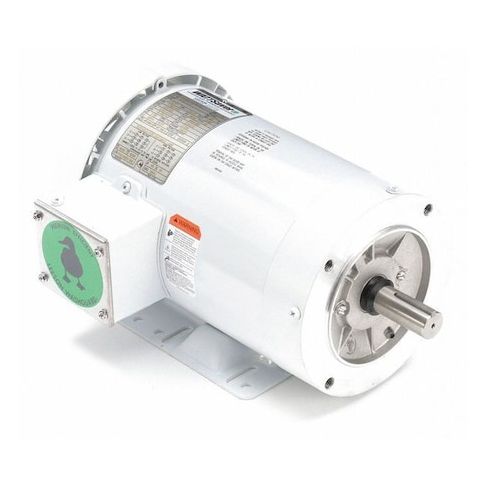

Washdown Motor, 1-1/2 HP, Face/Base, 145TC
This 1.5 HP washdown motor from Leeson is designed for demanding applications in harsh environments. Suitable for use in 230/460V AC systems, it provides reliable operation at a high level of efficiency. Its totally enclosed fan-cooled design and NEMA Design B rating ensure durability and resistance to contaminants. The motor's continuous duty cycle and 1.15 service factor make it ideal for applications requiring high torque and power. Use it in food processing, chemical handling, and other industries where washdown is necessary. Its compact design and easy installation make it a convenient choice for a variety of applications.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Industrial laundry equipment
- Food processing machinery
- Pumping stations for water treatment plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 11.10
- Package Height: 12.00
- Package Weight: 46.00
Product info last updated on March 1, 2026 6:44am UTC
Category: Motors
