Washdown Motor, 3HP, Face/Base, 182TC Frame MPN:132198.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609066

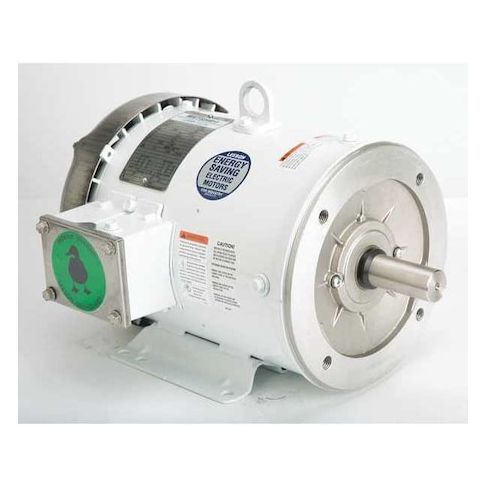

Washdown Motor, 3HP, Face/Base, 182TC Frame
This 3HP washdown motor from Marathon is designed for heavy-duty use in harsh environments. Suitable for 208V and 200V applications, it operates at 1,760 RPM with a continuous duty cycle. The motor's totally enclosed fan-cooled design and Class F insulation ensure reliable performance in temperatures up to 40°C. Ideal for use in food processing, beverage manufacturing, and other industries where cleanliness and sanitation are critical, this motor provides a durable and efficient solution for demanding applications. Its compact design and NEMA Design B rating make it a versatile choice for a wide range of washdown and sanitary applications.
Top product features:
- Three-phase design for efficient power usage
- Totally enclosed fan cooled design for reliable operation in harsh environments
- Continuous duty cycle for uninterrupted performance
Top product applications:
- Food Processing Machinery
- Packaging Machinery
- Pharmaceutical Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.8/3.9 A, 182TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.40
- Package Width: 15.20
- Package Height: 13.70
- Package Weight: 79.00
Product info last updated on February 7, 2026 3:09pm UTC
Category: Motors
