Washdown Motor, 5HP, Face/Base, 184TC Frame MPN:132200.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609057

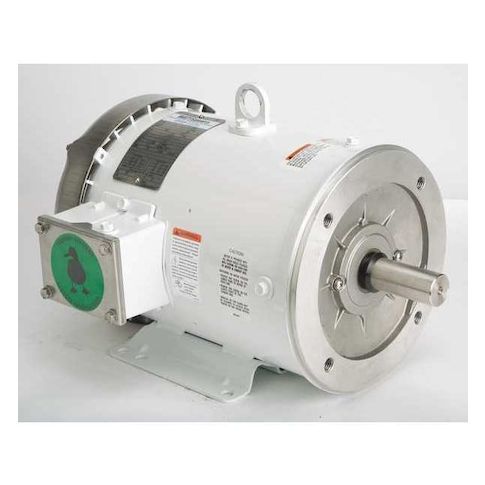

Washdown Motor, 5HP, Face/Base, 184TC Frame
The Marathon 5HP Washdown Motor is a reliable and efficient solution for demanding applications in harsh environments. Designed for continuous operation, this three-phase motor withstands frequent washdowns and exposure to water and chemicals. Its totally enclosed fan-cooled design and Class F insulation ensure optimal performance and longevity. Suitable for a wide range of industries, including food processing, pharmaceutical, and chemical manufacturing, this motor is ideal for applications such as pumps, mixers, and conveyors. With a short lead time and available in stock, this motor is ready to meet the demands of your operation.
Top product features:
- Totally Enclosed Fan Cooled design provides improved cooling and protection from environmental factors.
- Usable at 208V and 200V voltages allows for flexibility in installation and operation.
- Continuous duty cycle enables the motor to operate continuously without overheating or degradation.
Top product applications:
- Food Processing
- Chemical Processing
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,515 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.0/6.0 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.30
- Package Width: 15.30
- Package Height: 13.20
- Package Weight: 89.00
Product info last updated on April 3, 2026 8:23am UTC
Category: Motors
