Washdown Motor, 10 HP, 215TC Frame, 60 Hz MPN:140821.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609005

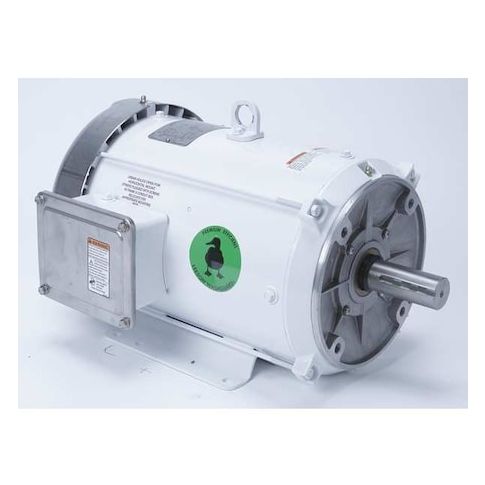

Washdown Motor, 10 HP, 215TC Frame, 60 Hz
This 10 HP washdown motor from Marathon is designed for harsh environments and demanding applications. Built with a totally enclosed fan-cooled (TEFC) design, it provides reliable operation and efficient cooling in areas where water and dust are present. Suitable for continuous duty cycles, this motor can be used in a variety of applications, including food processing, chemical manufacturing, and pharmaceutical production. Its three-phase design and high service factor make it an ideal choice for high-demand applications, while its compact 215TC frame ensures easy installation in tight spaces.
Top product features:
- Three-Phase design for efficient operation
- Totally Enclosed Fan Cooled design for reliable performance in harsh environments
- Continuous Duty Cycle for uninterrupted operation
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 26.8/13.4 A, 215TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 17.20
- Package Height: 19.40
- Package Weight: 183.00
Product info last updated on March 26, 2026 4:26pm UTC
Category: Motors
