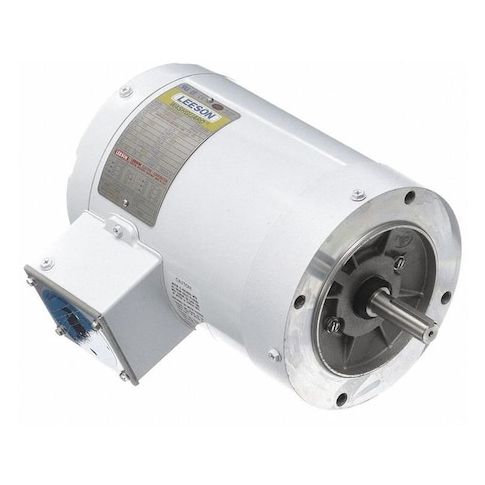

Washdown Motor, 1 HP, 1-15/16 in. Shaft L
This 1 HP washdown motor is designed for use in harsh environments, featuring a totally enclosed non-ventilated (TEFC) enclosure that protects against dust and water. Suitable for continuous duty cycles, it operates at 3,450 RPM and is rated for 230/460V AC. Its compact 56C frame makes it ideal for space-constrained applications. The motor's durable design and 1.15 service factor ensure reliable performance even in demanding situations. Use it in food processing, pharmaceutical, or chemical manufacturing facilities where cleanliness and reliability are paramount. Its compact size and high efficiency make it a valuable addition to any washdown application.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design
- Three-Phase motor design for efficient power transmission
- 1-15/16 in. Shaft Length for versatile mounting options
Top product applications:
- Food and Beverage Processing
- Pump and Blower Drives
- Water and Wastewater Treatment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 11.10
- Package Height: 11.00
- Package Weight: 34.80
